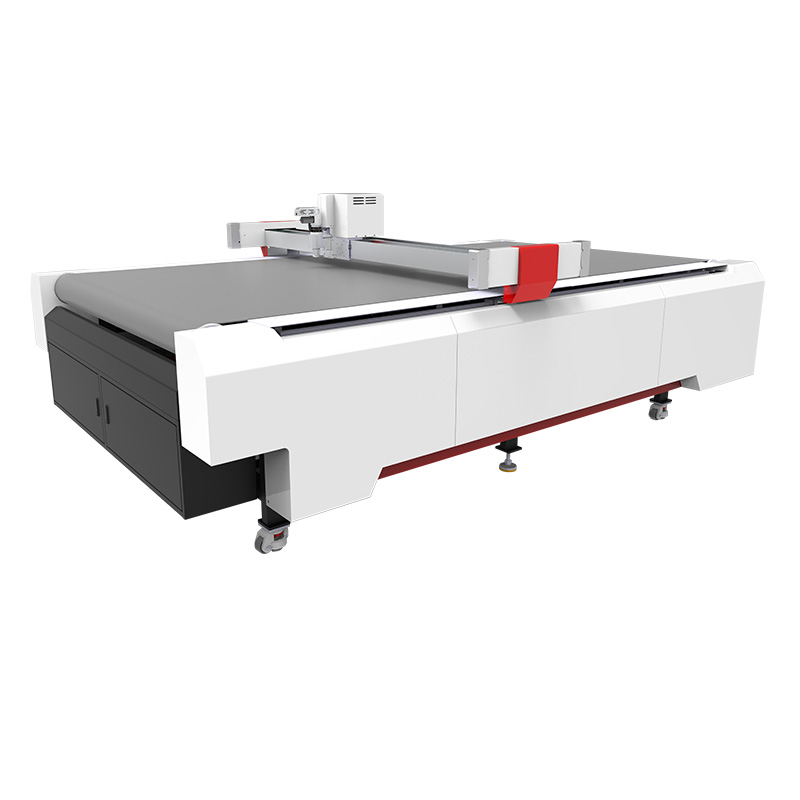

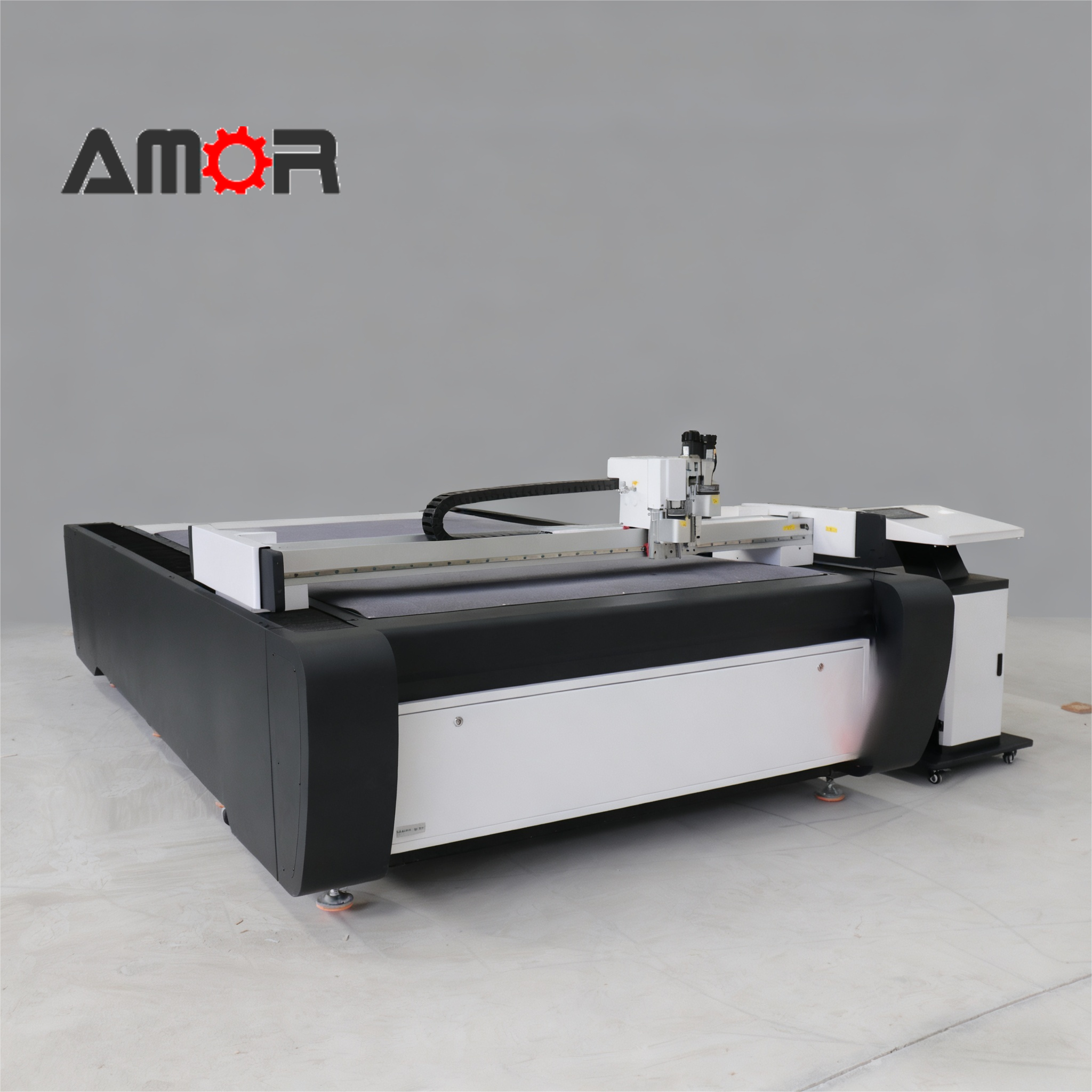

Equipped with an automatic feeding system, it can be equipped with high-frequency electric oscillation tools and high-power pneumatic oscillation tools to meet the needs of automatic cutting of single or multi-layer leather.

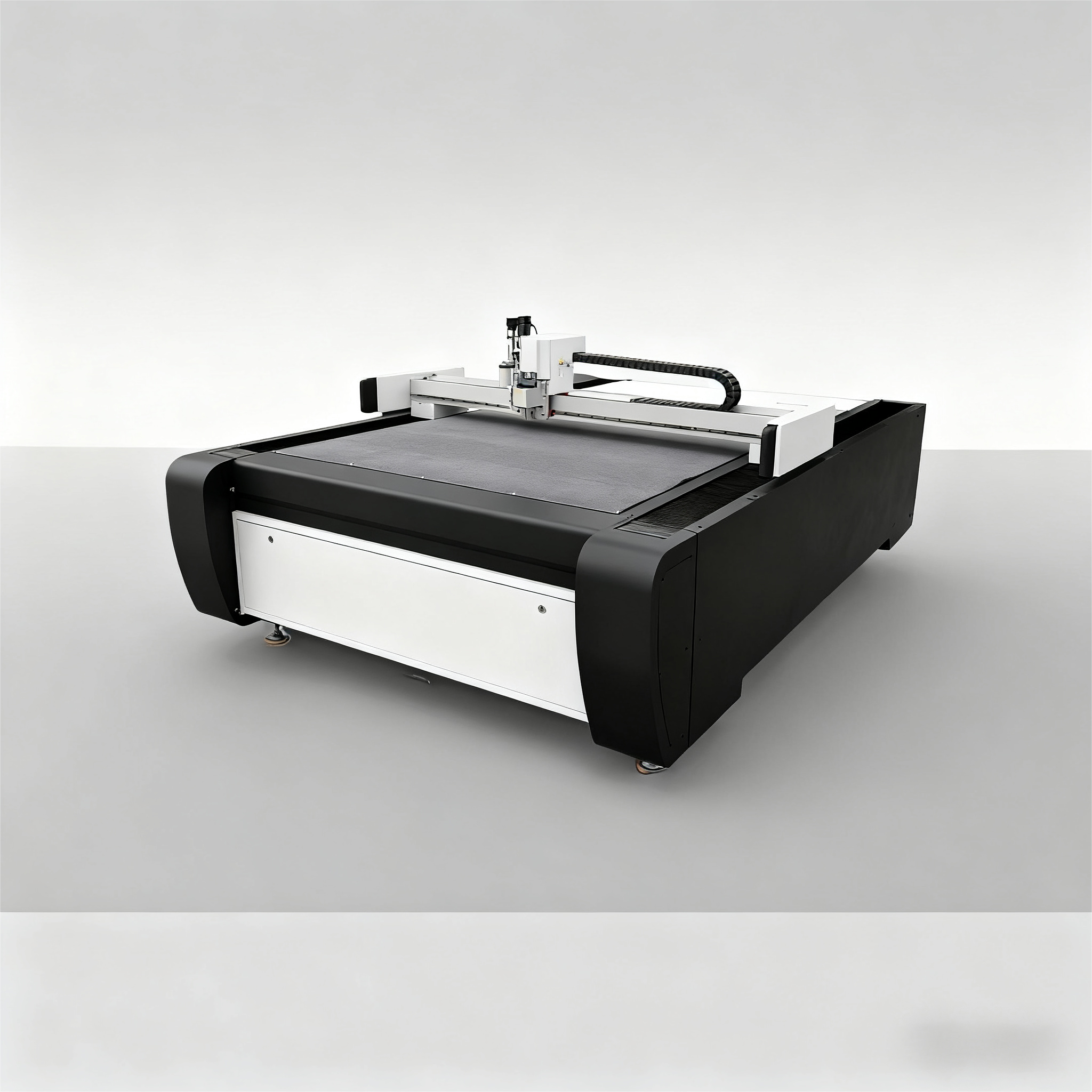

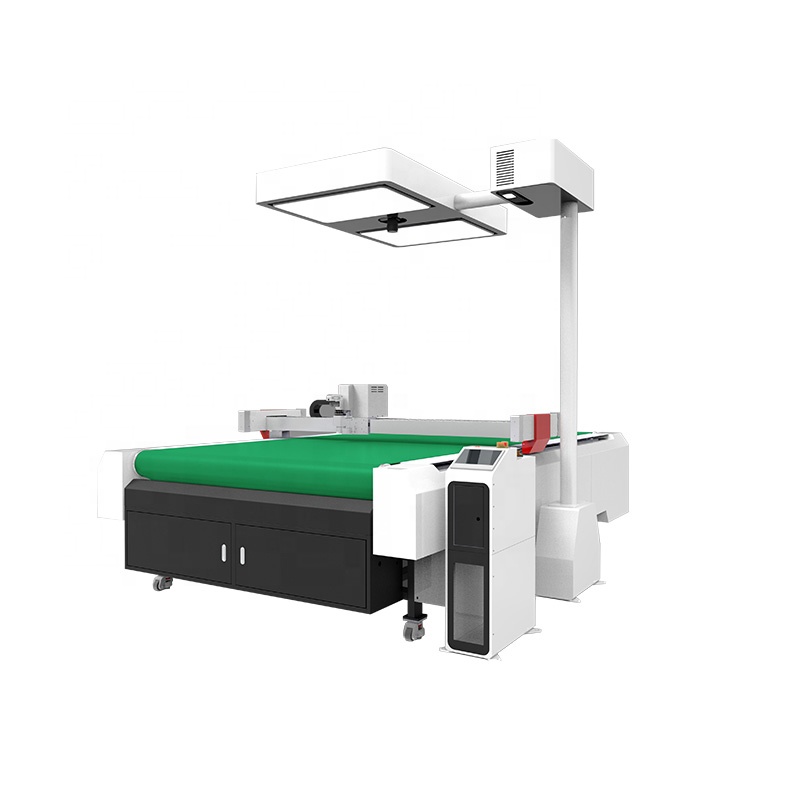

If you need to cut both rolls of PU leather and pieces of genuine leather, then the ALC intelligent leather cutting machine is your best choice, and can customize different processing ranges according to the size of genuine leather.
| Model | 1625AK | 2530 ALC (Support Customization) |
|---|---|---|
| Working area | 1600mm x 2500mm | 2500mm x 3500mm |

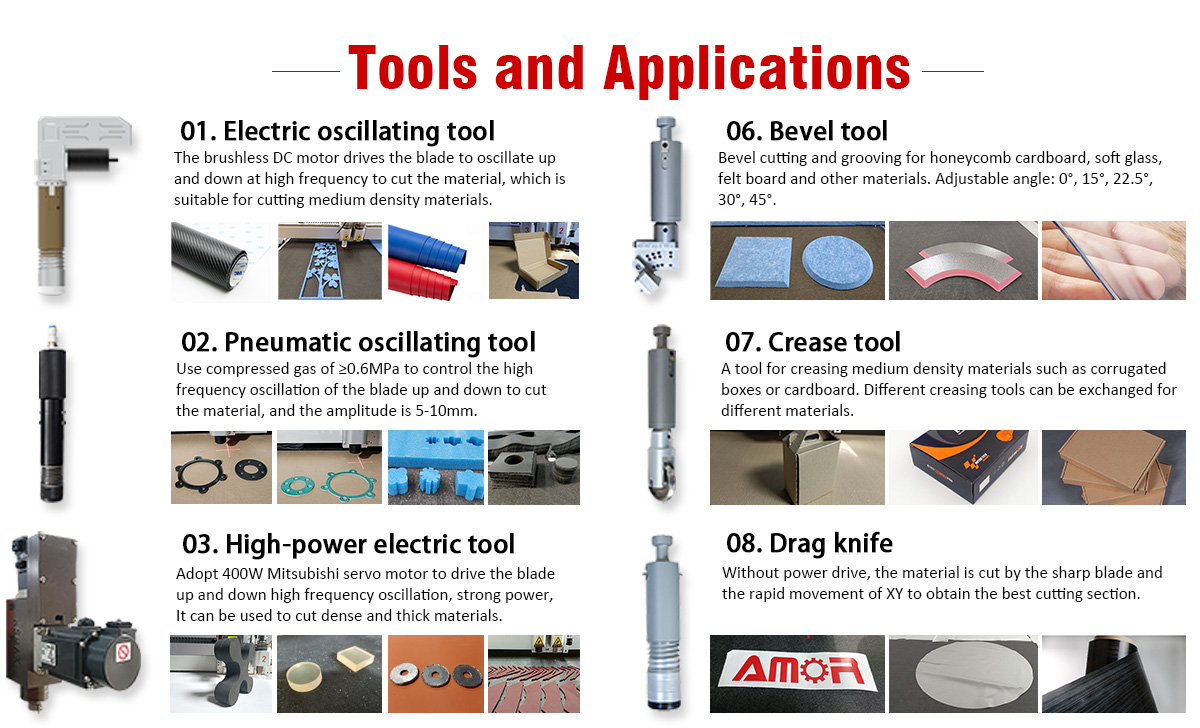

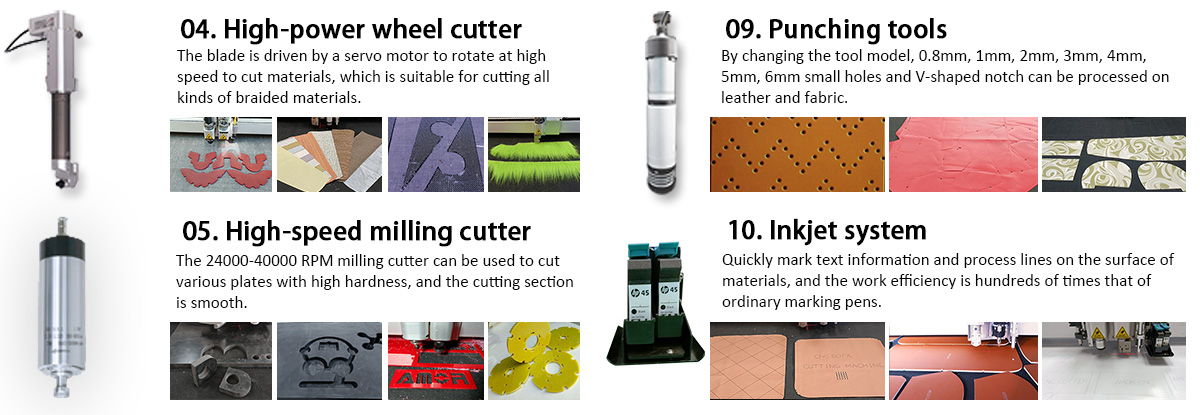

| Multi-function tool | Vibrating knife, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife | |
| Safety devices | Safety devices use infrared sensing, safe and reliable | |
| Applicable materials | PVC, leather, sponge composite skin, fabric, XPE material, wire ring, leather, soft glass, silicone, rubber material, etc. composite soft material | |
| Material fixing method | Vacuum partition adsorption | |
| Cutting speed | 0-1500mm/s (According to material) | |
| Software system | Intelligent identification and nesting system, fast cutting system | |
| Advantage configuration |
01. X-axis double Mitsubishi servo motor + precision reducer drive; 02. The beam adopts the extrusion process of aviation aluminum alloy die; 03. All electrical accessories use the French Schneider brand. |
|
| Rated power | 11KW | |
| Rated voltage | 380V±10% / 220V±10% Optional | |
| Support file format | AI, PLT, DXF, etc. | |

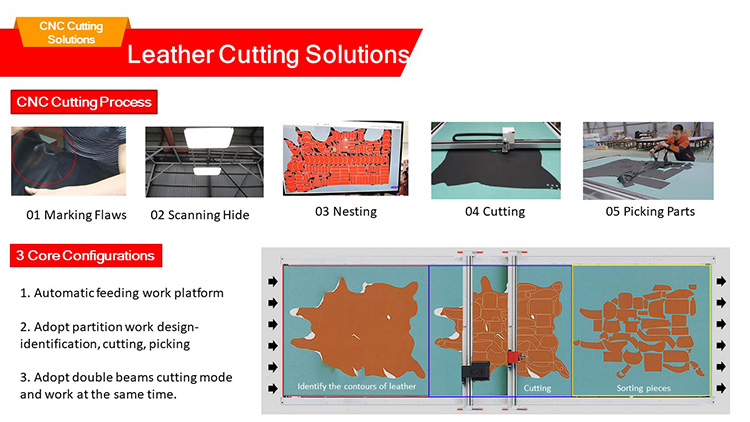

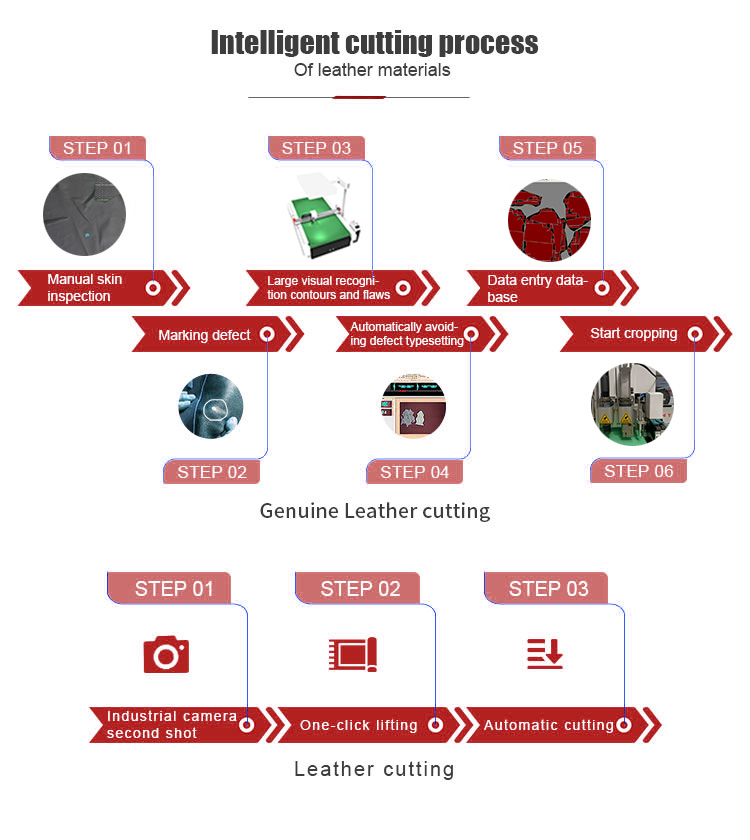

Place the leather part in the feeding area, and the rolling operation platform can automatically send the leather to the scanning area. One person can operate the leather material above 55 square feet, and one person can assist, and the leather material below 40 square feet can be operated by one person.

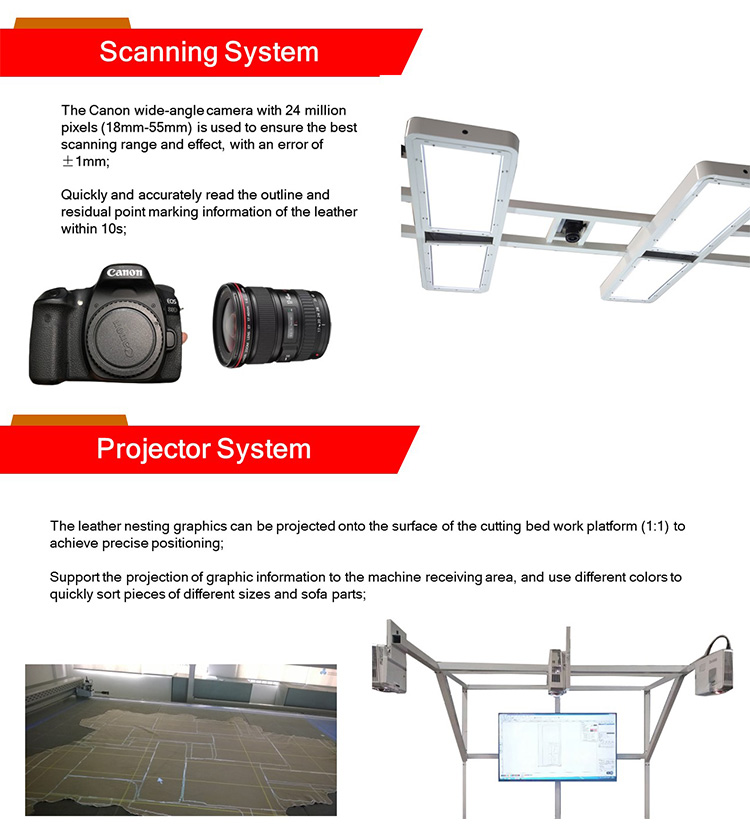

The leather contour scanning is completed in 10s, the intelligent nesting is completed in 2 minutes, and the DXF, PLT vector format is output.
The cutting and scanning modules are two non-interfering units. During cutting, the scanning unit runs independently to scan and nest the next piece of leather.

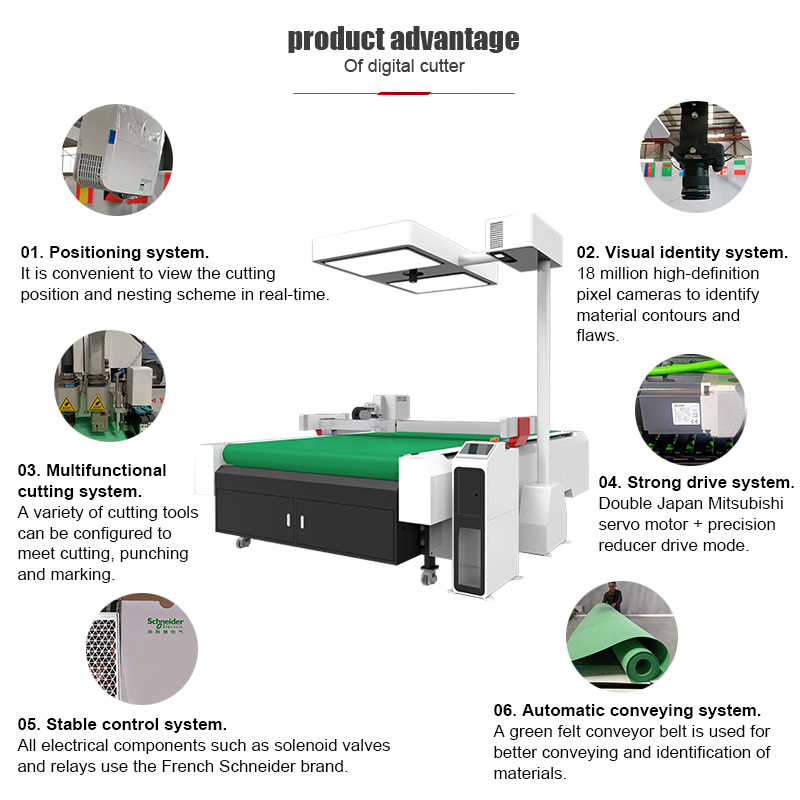

The projection positioning system is used to display the piece information on the surface of the piece to help customers sort the pieces quickly and accurately. At the same time, the cutting unit and the scanning unit are performing their own workflows on different leather materials.

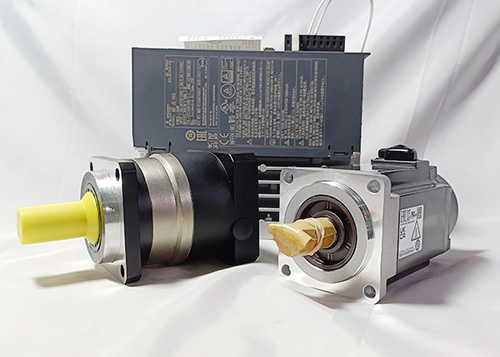

The X-axis adopts the transmission mode of 2X400 Mitsubishi servo motor + precision reducer, which is powerful and high-precision.

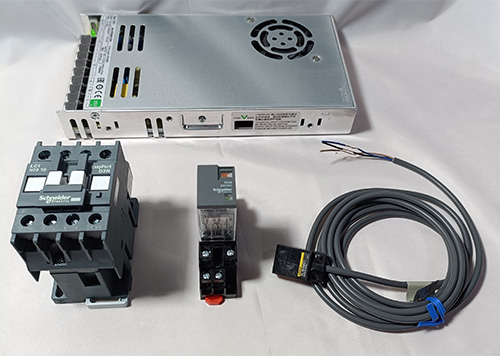

All electrical components are from international brands such as French Schneider, Japanese Omron, and American 3M.

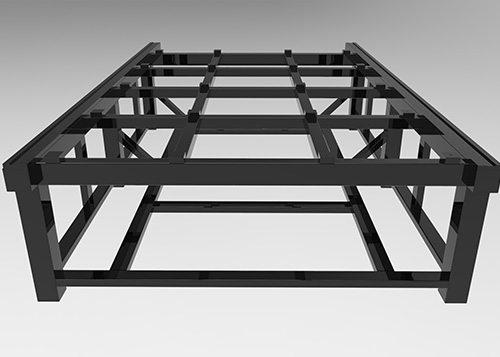

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

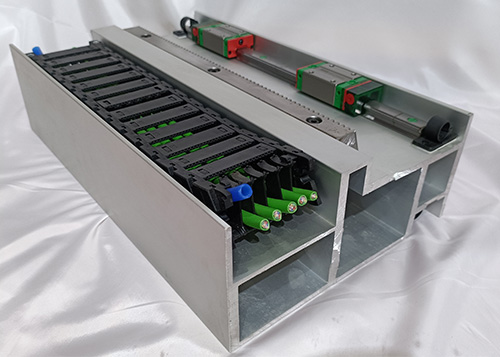

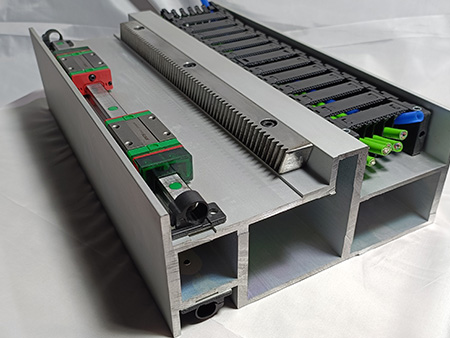

The wall thickness is 8mm and the width is 220mm. It has its own installation reference and has strong anti-deformation ability.

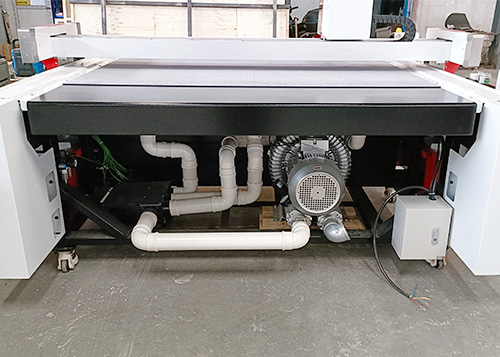

Supports multiple partition adsorption modes: according to graphics, cutting position and manual settings, etc. Hold the material firmly.

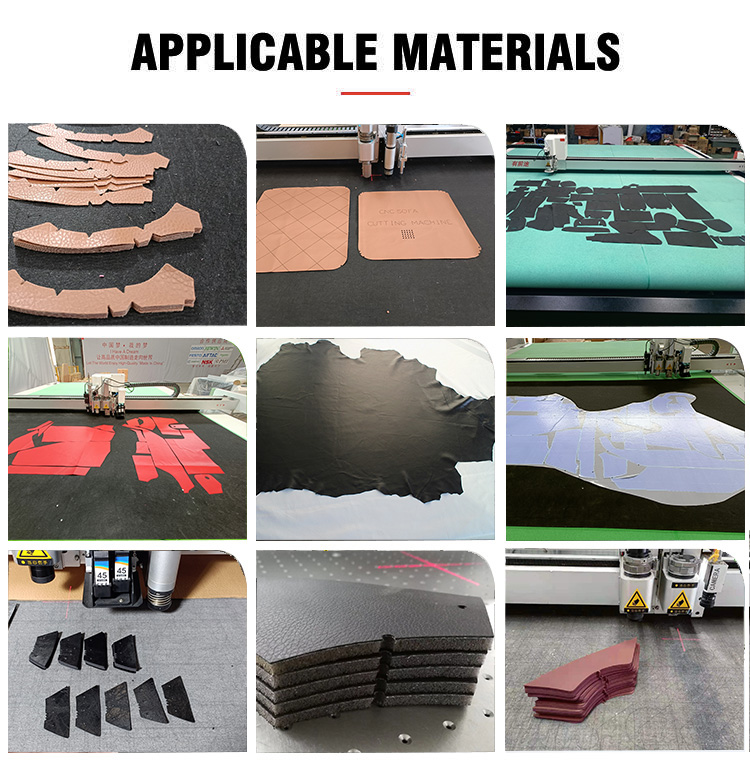

The machine is highly versatile and compatible with PVC, leather, sponge composite skin, fabric, XPE material, wire ring, soft glass, silicone, rubber material, plastic, MDF, acrylic, wood, and other composite soft materials.
The cutting speed ranges from 0 to 1500mm/s, which dynamically adjusts depending on the thickness, density, and type of the material being processed.
Yes, our configuration systems (such as the 2530 ALC model) fully support customization, enabling processing ranges to be modified to suit your specific material dimensions.

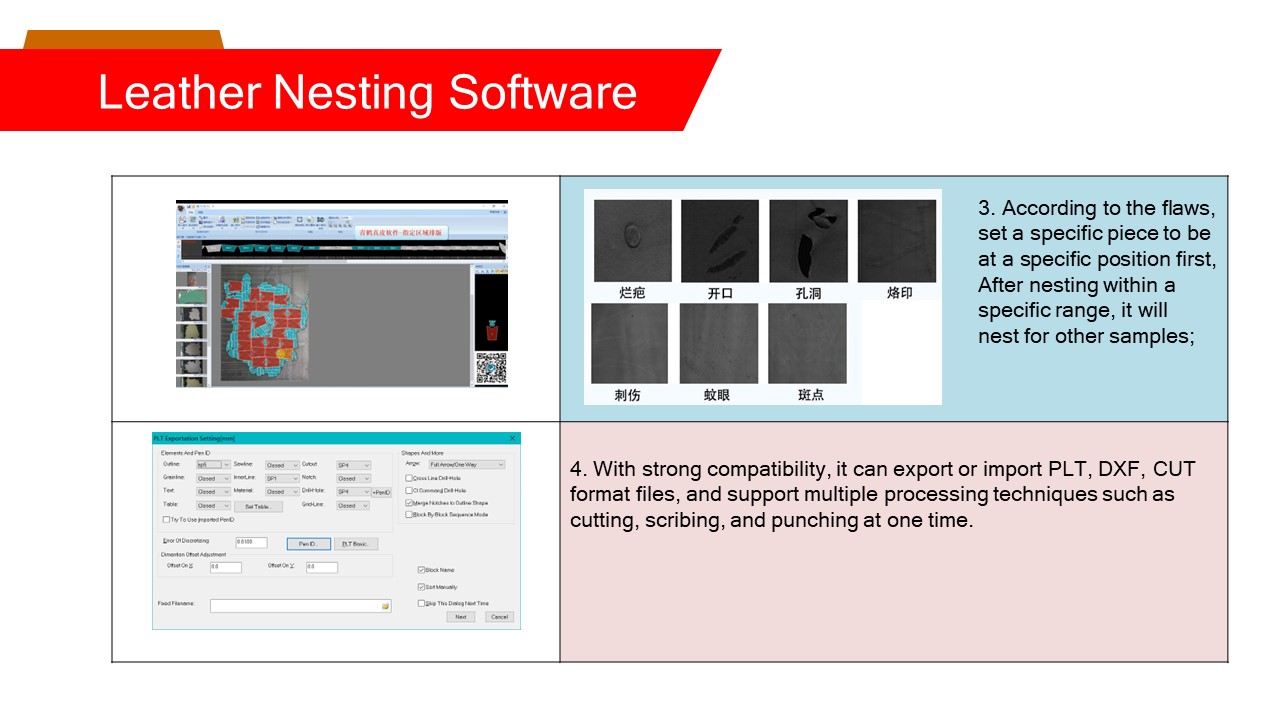

The intelligent identification, nesting, and fast cutting software systems are compatible with popular vector file formats including AI, PLT, and DXF.
The integrated safety devices use high-precision infrared sensing. If an obstacle or hand enters the working envelope during operation, the machine safely pauses to prevent injury or damage.
The system completes leather contour scanning in just 10 seconds. The intelligent automated nesting system takes only 2 minutes to calculate optimal yields, saving significant time and material waste.
